Top > 911 > EXHAUST SYSTEM > WASTEGATE > Wastegate stud, M8 x 25 mm., 911 Turbo (78-94) + 924 Turbo / GT (79-84)

WASTEGATE

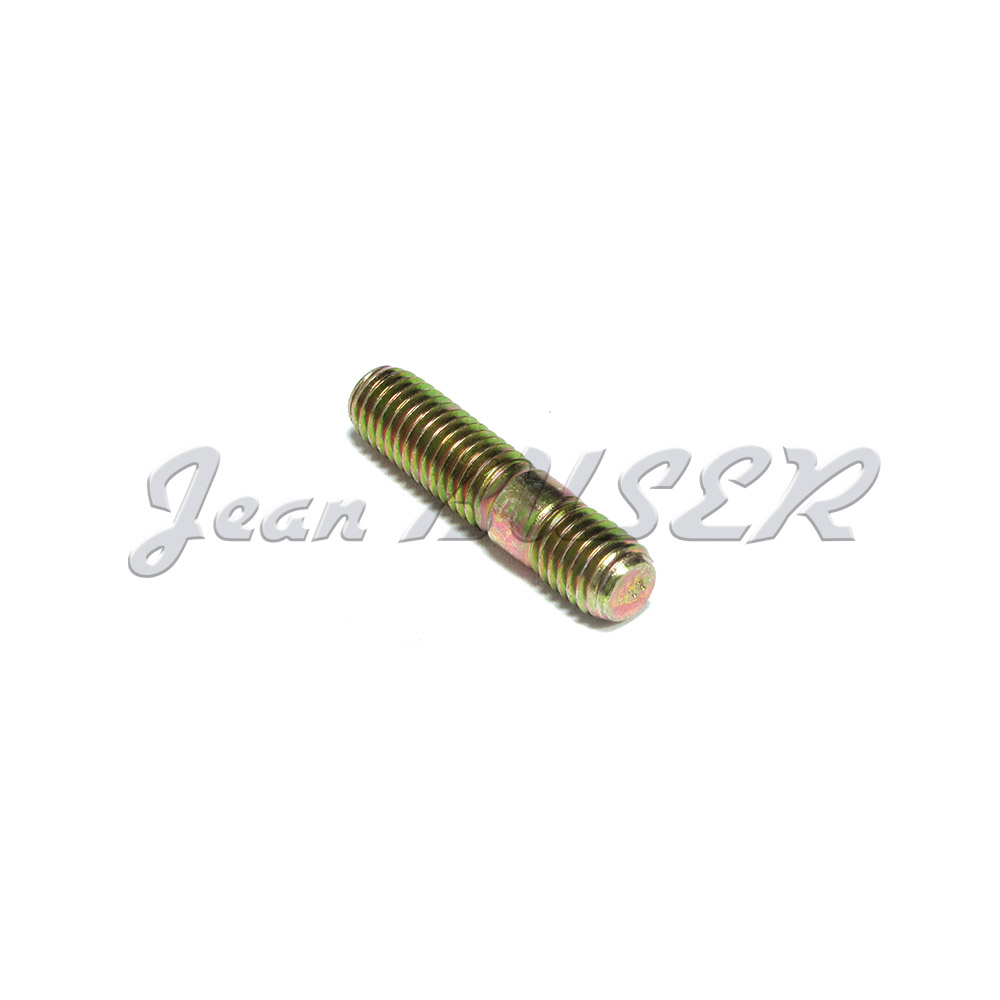

Wastegate stud, M8 x 25 mm., 911 Turbo (78-94) + 924 Turbo / GT (79-84)

Wastegate stud, M8 x 25 mm., 911 Turbo (78-94) + 924 Turbo / GT (79-84)
911.010465A5
Qty
 Available 6.48 € TTC
5.40 € HT
Buy Now
Our M8 x 25 mm. wastegate stud is used as original equipment in the following vehicle models:

    Porsche 911 Turbo 3.3 L (1978-1989)

    Porsche 964 Turbo 3.3 L (1991-1992)

    Porsche 964 Turbo 3.6 L (1993-1994)

    Porsche 924 Turbo (1979)

    Porsche 924 Turbo (1980-1984)

    Porsche 924 Carrera GT (1981)

For Turbocharged 911’s from 1978 to 1982, these studs fasten the wastegate exhaust pipe (reference 911.010465S) to the wastegate.

For Turbocharged 911’s from 1983 to 1989, these studs fasten the stainless steel wastegate exhaust pipe with a built-in muffler (reference 911.010465S1) to the wastegate.

For the 3.3 L and 3.6 L 964 Turbo’s these studs fasten the catalytic converter on the left side exhaust pipe to the wastegate.

Pour the 924 Turbo and 924 GT from 1979 to 1984, these studs fasten the wastegate to the exhaust pipe that is linked to the primary exhaust muffler.

In all the above cases, mounting of these M8 x 25 mm. studs is done horizontally with reference to the wastegate main axis.

Quantity required per vehicle: 4

Note: When replacing the M8 x 25 mm. wastegate studs or reinstalling the wastegate on your Porsche 911 or 924 Turbo, you will need to replace the following parts :

911.010486B: Crossover pipe gasket, from crossover pipe to wastegate, 911 Turbo (75-94) + 924 Turbo / GT (79-84) (2)
911.010185A1: Oil pump and wastegate mounting lock tab 911 (65-86) (8)
911.010472A: Exhaust M8 locknut, 911 (75-89) (8)
